LA-TACTICAL-ADAPTER-01 - The voltage adapter for lead-acid or car batteries

Product information "LA-TACTICAL-ADAPTER-01 - The voltage adapter for lead-acid or car batteries"

LA-TACTICAL-ADAPTER-01 - The voltage adapter set for mains operation and battery operation

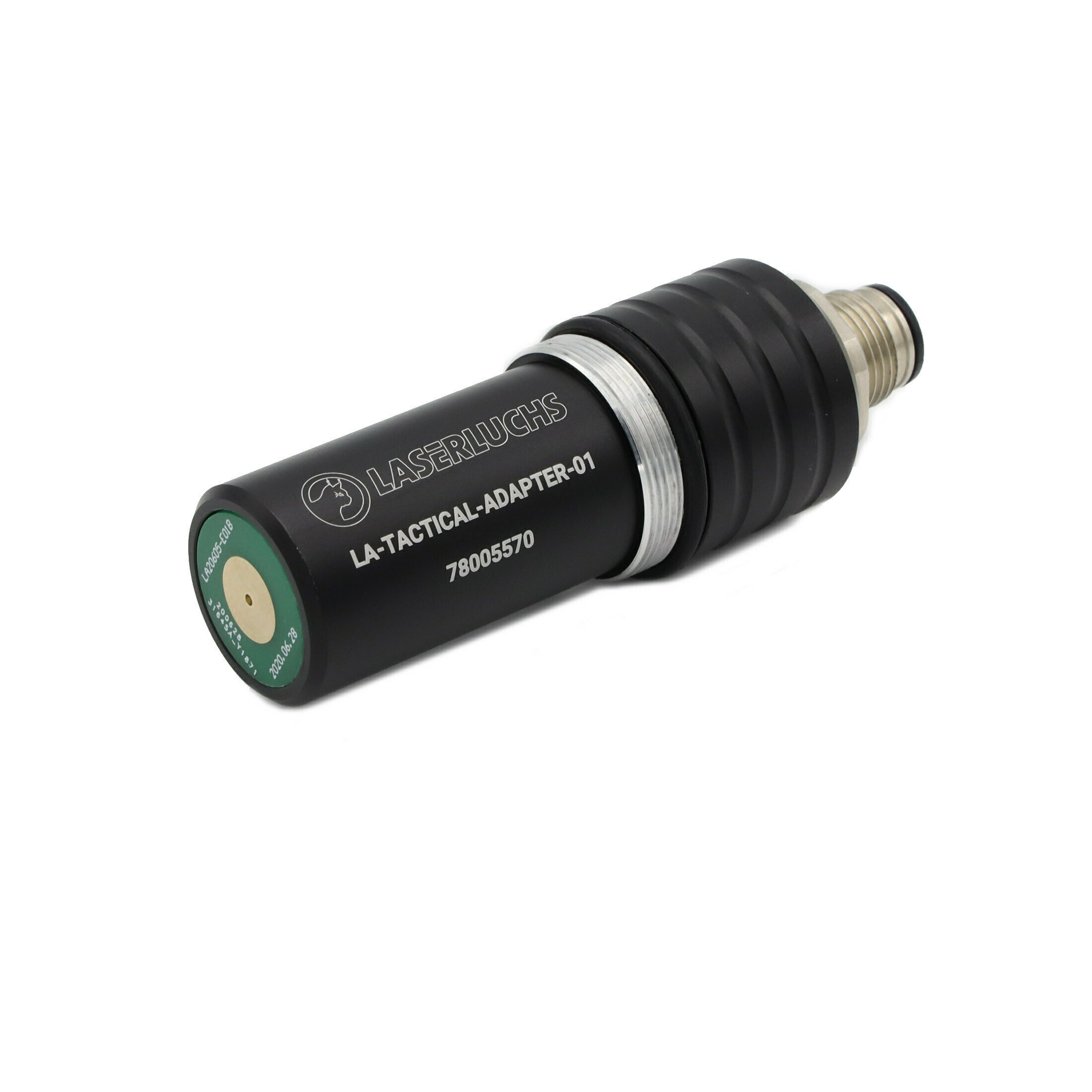

LA-TACTICAL-ADAPTER-01

The voltage adapter set for mains operation, e.g. 230V AC and batteries 6-28V DC.

Includes connection terminals for operating all laser illuminators, e.g. on a 12-24VDC car battery.

The ideal solution if you need to operate our eye-safe Laserluchs brighteners in a mobile and undetected manner.

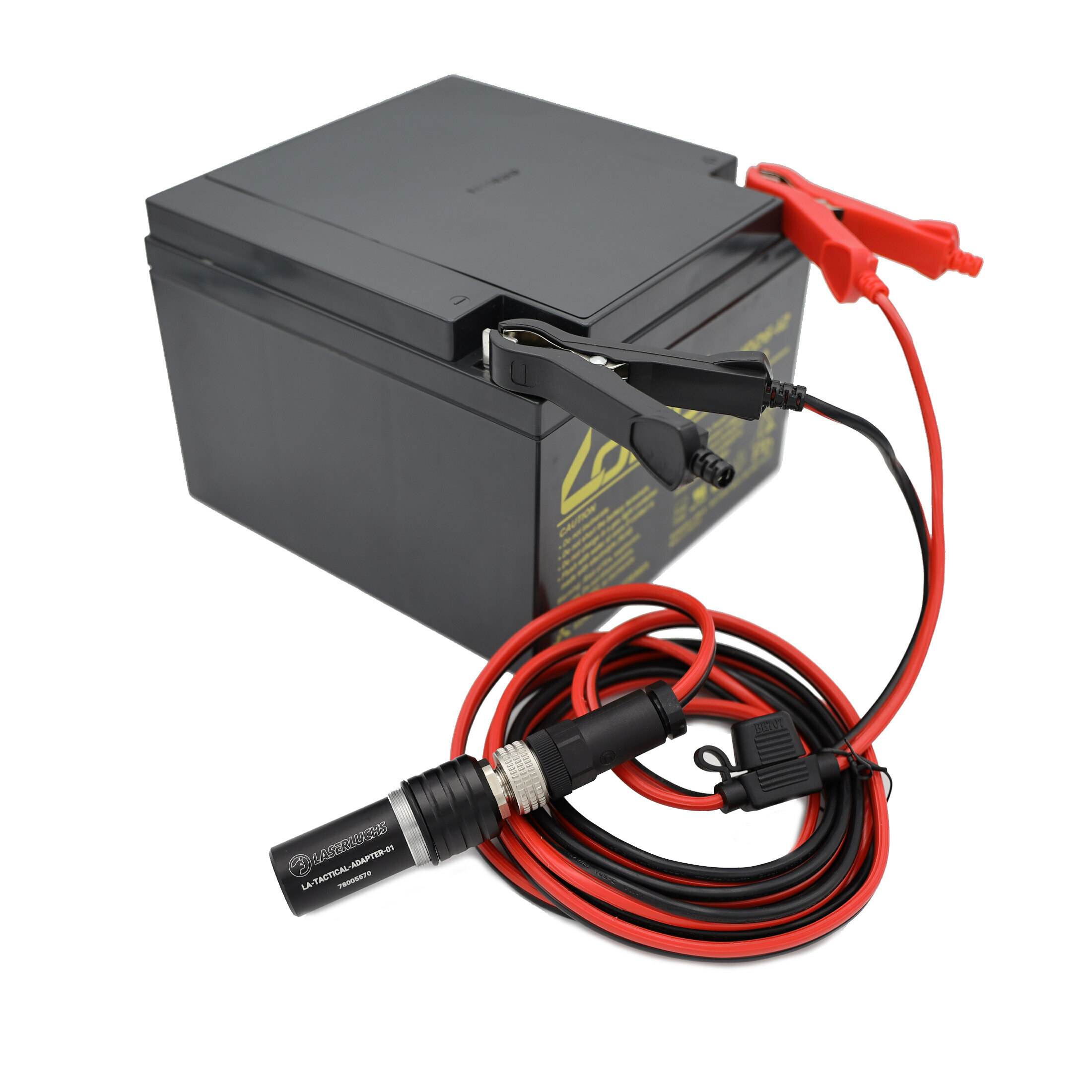

The voltage adapter allows you to easily connect to large battery systems such as a car battery. The voltage of the batteries can be between 6-24VDC, the voltage adapter automatically adjusts to the respective voltage and converts the voltage into the target voltage of 3VDC with almost no losses. The connection is made using high-quality M12 industrial plugs with locking. With a typical capacity of 100Ah, you can achieve an operating time of approx. 4,000 hours with an LA850-50-PRO-II, which corresponds to almost half a year of continuous operation!

Details:

  • Input: 6-28VDC
  • Output: 3VDC
  • Suitable for all LASERLUCHS® laser brighteners

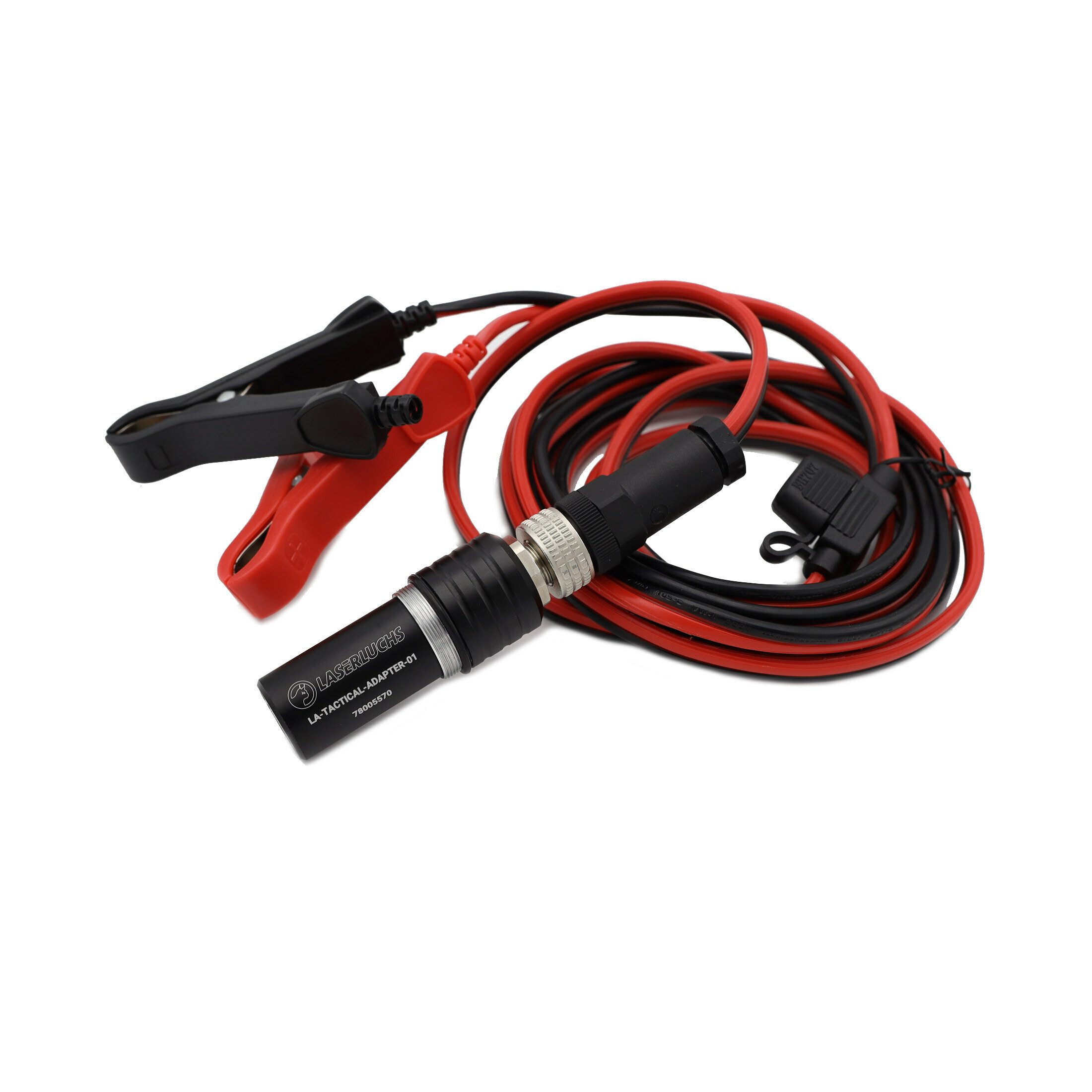

  • with strong metal connection clamps for a safe connection to the poles of a sealed lead-acid or car battery

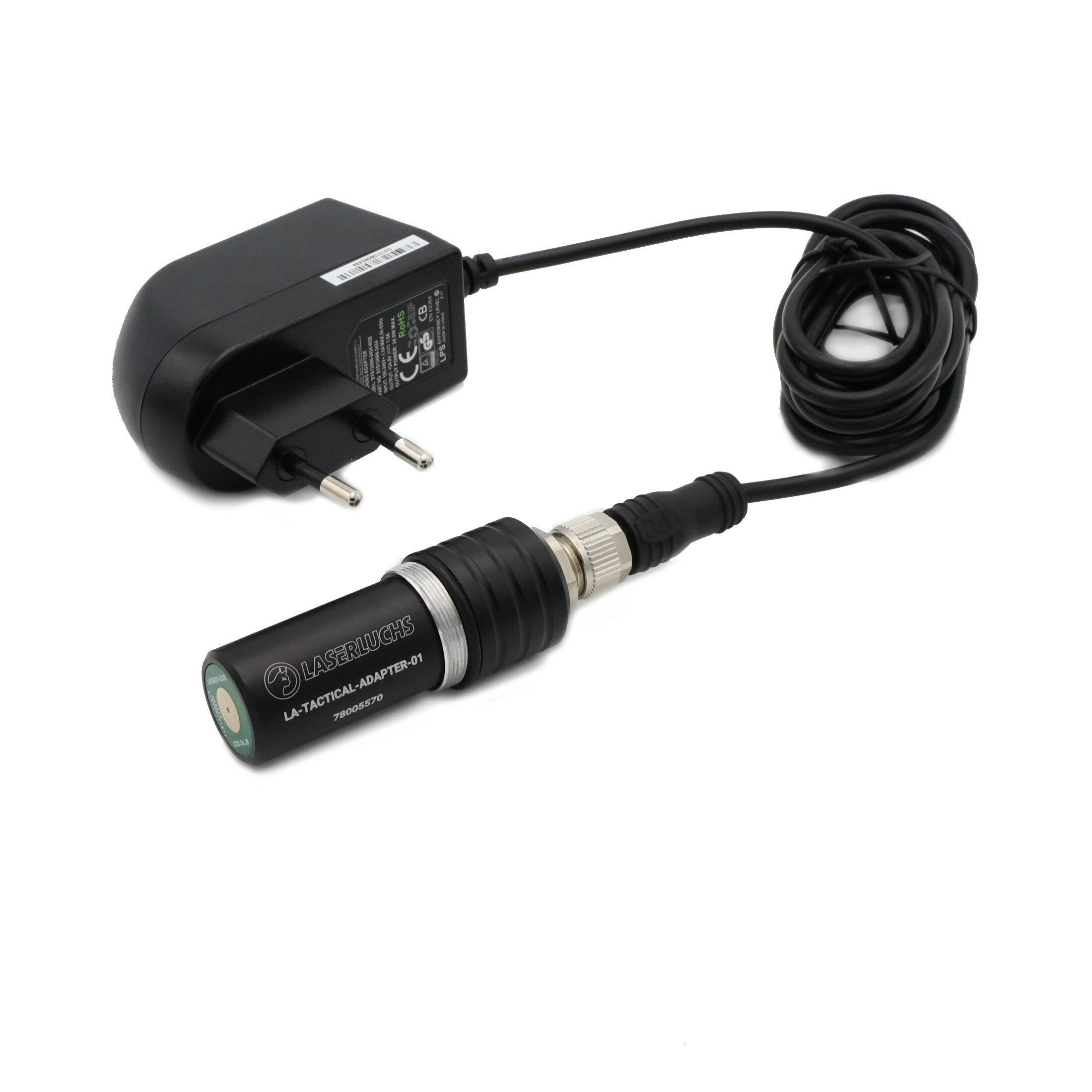

  • incl. mains plug for mains operation 230V AC
  • ideal for long-term observations, operating time e.g. with a 12V 100AH ​​car battery = 4,000 hours
  • Input voltage: 6-28 VDC
  • Output voltage: 3 VDC
  • Strong metal clamps for the safe use with a car battery
  • Compatible with all LASERLUCHS illuminators

Delivery Content

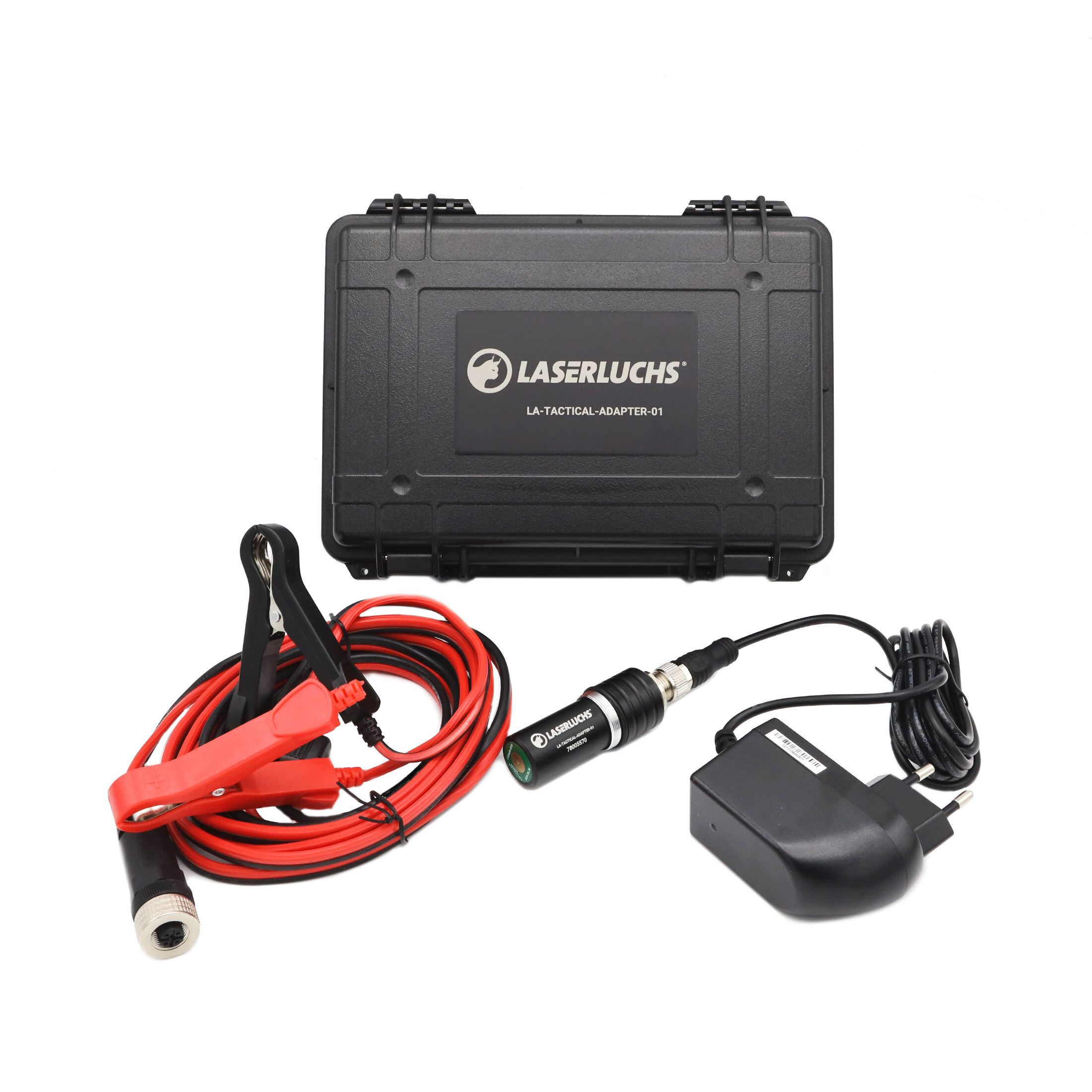

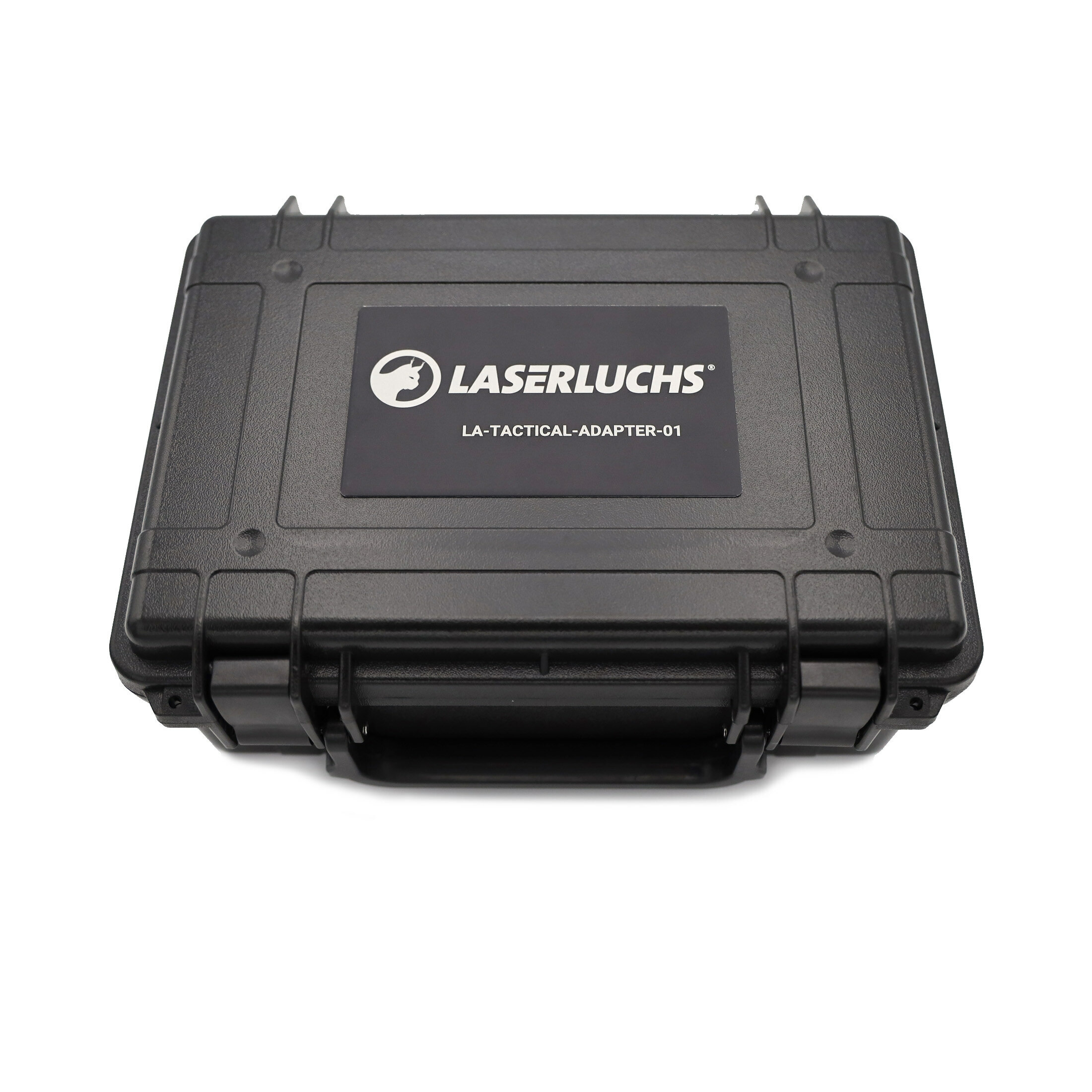

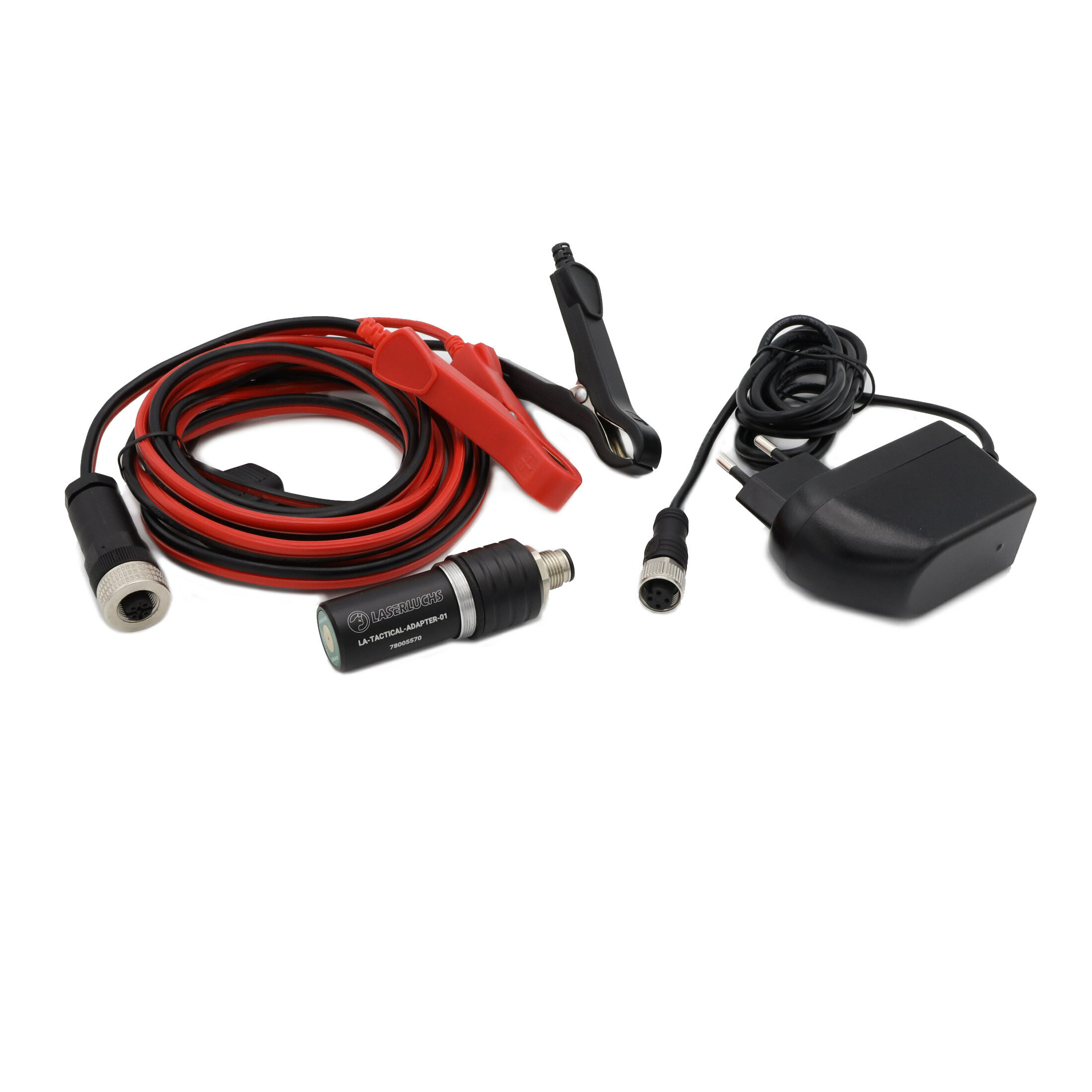

LA-TACTICAL-ADAPTER-01 Clamp connections Voltage adapter Power plug EU Hard case

Main Data

  • Customs tariff number: 85399090

Technical Parameters

  • Lifetime: > 50,000 h
  • Operating Temperature: -20°C - 50 °C
  • Storage Temperature: -40°C - 80 °C

Electrical Parameters

  • Potential of Housing: VDD(+)
  • Operating Voltage: 6 - 28, typ 24 V DC
  • Output Voltage: 3 V DC

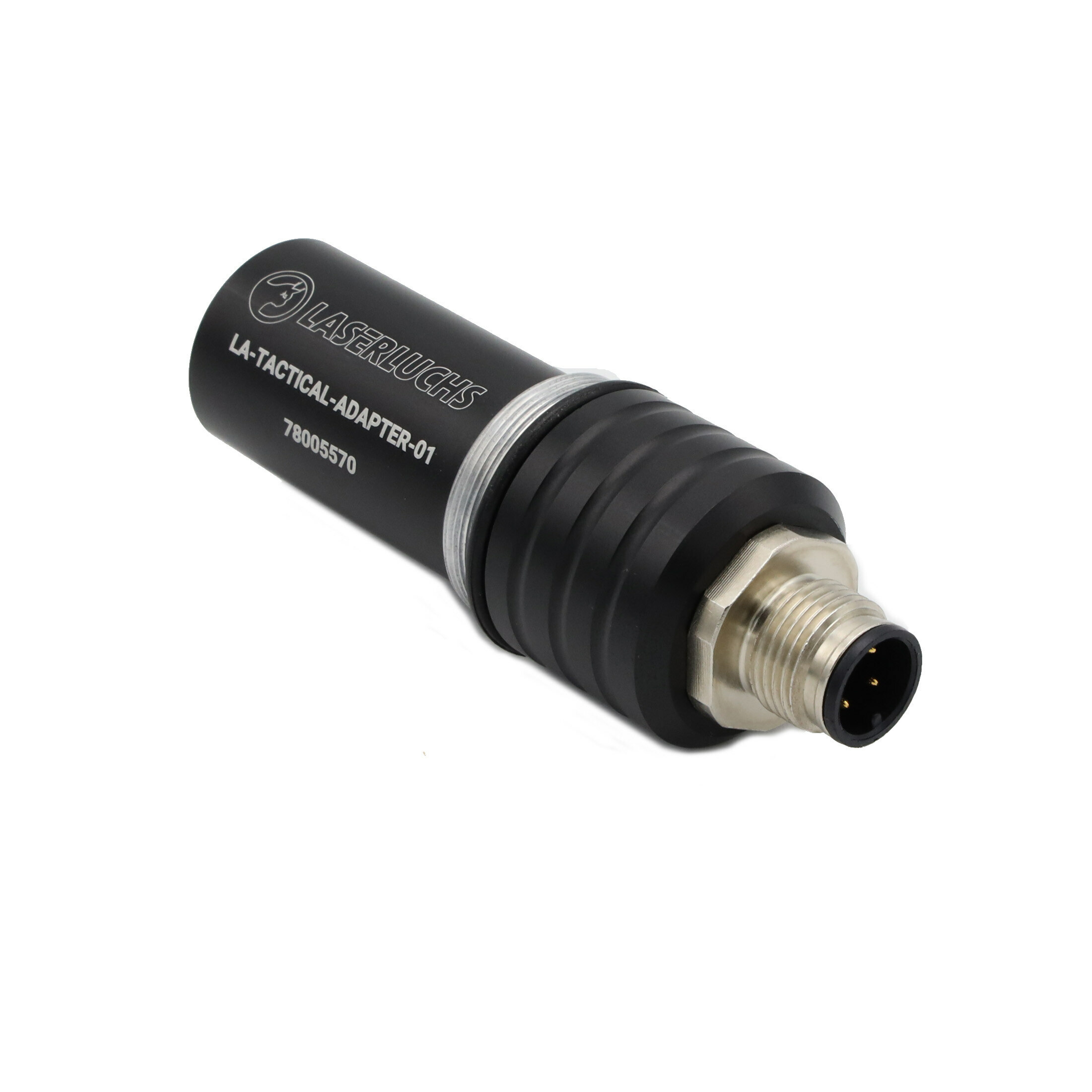

  • Connector: CON-M12

Mechanical Parameters

  • Size: Ø25.4x72 mm
  • Material: aluminium
  • Cable length: 3,000 mm
  • Housing Color: black
  • Connector Pin VDD: 1
  • Connector Pin GND: 3
